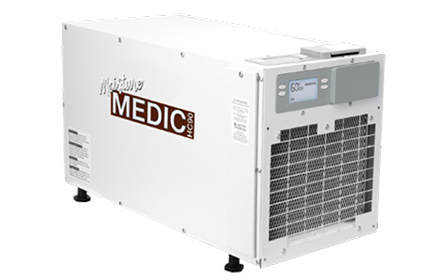

Dehumidifier
Model HC90 | Specification Sheet
SPECIFICATIONS
Capacity⁽¹⁾
90ppd
Energy Factor⁽¹⁾
2.2 L/kW-h
Airflow @ varying E.S.P.
(external static pressure – dry coil)
0.0″ w.c.
0.2″ w.c.
0.4″ w.c.
265 CFM
230 CFM
200 CFM
Current Draw⁽¹⁾
8.0 Amps
Noise
60 dBA unducted
Dimensions: (cabinet only)⁽²⁾
Width
Height
Length
12.5″
14.5″
27.5″
Weight
70 lbs.
Inlet air operating conditions during
-Dehumidification:
50°F – 104°F, 40°F
dew point min.
-Ventilation:
40°F – 140°F,
0% – 99%RH
(non-condensing)
⁽¹⁾ Rated capacity and energy factor test done and current draw measured in accordance with AHAM DH-1 2008 at 80°F/60%RH inlet air at 0.0 ESP. ⁽²⁾ Height does not include adjustable feet. The width excludes the filter doors and length excludes the duct collars.

FEATURES
Controls ⁽³⁾
Built-in digital control with display
Control mounting option
Field interchangeable from top to front
Cabinet insulation
1/2″ EPS
Air discharge orientation
Top or end
Backdraft damper at outlet
Included
Filter
Washable MERV 8
Refrigerant
R410A
Coil corrosion resistance
E-Coated coil
8′ Power Cord
Plug Type
Discharge air temperature rise
10°F – 30°F
Drain connection⁽⁴⁾
3/4″ MNPT Threaded
⁽³⁾ Built-in automatic control capable to be set up for dehumidification and ventilation or zoning. ⁽⁴⁾ Threaded barbed fitting included. HC90 includes 5′ of clear drain tubing.



SPECIFICATIONS
Capacity⁽¹⁾
90ppd
Energy Factor⁽¹⁾
2.2 L/kW-h
Airflow @ varying E.S.P.
(external static pressure – dry coil)
0.0″ w.c.
0.2″ w.c.
0.4″ w.c.
265 CFM
230 CFM
200 CFM
Current Draw⁽¹⁾
8.0 Amps
Noise
60 dBA unducted
Dimensions: (cabinet only)⁽²⁾
Width
Height
Length
12.5″
14.5″
27.5″
Weight
70 lbs.
Inlet air operating conditions during
-Dehumidification:
50°F – 104°F, 40°F
dew point min.
-Ventilation:
40°F – 140°F,
0% – 99%RH
(non-condensing)
⁽¹⁾ Rated capacity and energy factor test done and current draw measured in accordance with AHAM DH-1 2008 at 80°F/60%RH inlet air at 0.0 ESP. ⁽²⁾ Height does not include adjustable feet. The width excludes the filter doors and length excludes the duct collars.
FEATURES
Controls ⁽³⁾
Built-in digital control with display
Control mounting option
Field interchangeable from top to front
Cabinet insulation
1/2″ EPS
Air discharge orientation
Top or end
Backdraft damper at outlet
Included
Filter
Washable MERV 8
Refrigerant
R410A
Coil corrosion resistance
E-Coated coil
8′ Power Cord
Plug Type
Discharge air temperature rise
10°F – 30°F
Drain connection⁽⁴⁾
3/4″ MNPT Threaded
⁽³⁾ Built-in automatic control capable to be set up for dehumidification and ventilation or zoning. ⁽⁴⁾ Threaded barbed fitting included. HC90 includes 5′ of clear drain tubing.
PRINCIPLE OF OPERATION
The Moisture Medic Model HC90 crawl space dehumidifier is designed to dehumidify the air coming into the unit by passing the incoming air over an evaporator coil to drop the air temperature below the dew point of the air. Moisture is removed from the air and drained out of the unit to a common floor or waste drain. The air is then reheated in the condenser coil and exits the unit.
Dehumidification occurs until the set point is reached, then shuts off until periodic sampling determines a need for operation.
APPLICATION
The Moisture Medic Model HC90 crawl space dehumidifier is perfect for a wide range of applications including whole home dehumidification and control of moisture in basements and crawl spaces.
VENTILATION / CIRCULATION
The Model HC90 can also be programmed to circulate the air within a crawl space. Circulating the air evens out relative humidity levels and temperature in the space, eliminating variations in the environment.
PRINCIPLE OF OPERATION
The Moisture Medic Model HC90 crawl space dehumidifier is designed to dehumidify the air coming into the unit by passing the incoming air over an evaporator coil to drop the air temperature below the dew point of the air. Moisture is removed from the air and drained out of the unit to a common floor or waste drain. The air is then reheated in the condenser coil and exits the unit.
Dehumidification occurs until the set point is reached, then shuts off until periodic sampling determines a need for operation.
APPLICATION
The Moisture Medic Model HC90 crawl space dehumidifier is perfect for a wide range of applications including who-home dehumidification and control of moisture in basements and crawl spaces.
VENTILATION / CIRCULATION
The Model HC90 can also be programmed to circulate the air within a crawl space. Circulating the air evens out relative humidity levels and temperature in the space, eliminating variations in the environment.
